ELECTRICAL (CLASSIC MORGANS 1950-2004)
See other sections of the GoMoG Manual for more information
1. ALTERNATORS
1.01 Bosch Alternator into a Plus 8
1.02 Generator-sized Alternators
1.03 GM alternator into on a Plus 8
1.04 Lucas (Troubleshoot Pages 31-37)
1.05 Red Warning Light
1.06 Testing them
1.07 TR4 Kit
1.08 TR2/3/4 Exchange
1.09 Understanding them
1.10 1967 4/4 Alternator by Ron Kerans @ OhMog

2. BATTERIES
2.01 Batteries: Choosing one for Your Morgan
2.02 Charging when very flat
2.03 Checking
2.04 Generator-sized Alternators
2.05 Isolator or Cut Off Switch

2.06 Lucas (Troubleshoot Pages 32)
2.07 Maintenance (from MogNW!)
2.08 Placement (Correcting it for LHDs)
2.09 Sizes

DIAGNOSIS
3.01 Alternators (Testing them)
3.02 Brake Light Switch
3.03 Electrical Problems
3.04 Flasher Problem (Tracing a)
3.05 Headlamps Lucas (Pages 42-44)
3.06 Ignition Switches (1970s - early 1980s)
3.07 Lucas (Troubleshoot Pages 31-37)
3.08 Lucas Handbook for Early Morgans
3.09 Multimeter (How to use one)
3.10 Rear Brake Lamps
3.11 Relay (wiring one in)
3.12 Starter (Checking Your)
3.13 Starting (Not!
3.14 Wiper Problem for Left Hand Drives

3.15 Wiper Motor (Rebuilding 1 speed)
3.16 Wiring Colours (Lucas)
3.17 Wiring Colours II (Lucas)
3.18 Wiring Colors (Morgan Pre-1970)
3.19 Wiring Colors (Radio)

4. DYNAMOS
4.01 Dynamo versus Alternator
4.02 Issue with a TR4 Plus4
4.03 Lucas (Troubleshoot Pages 26-30)
4.03 Red Light

5. ELECTRICITY
5.01 Changing to Negative Earth/Ground I
5.02 Changing to Negative Earth/Ground II
5.03 Changing to Negative Earth/Ground III
5.04 Changing to Negative Earth/Ground IV
5.05 Voltage Stabilizer I




5.06 Voltage Stabilizer II
5.07 Voltage Stabilizer III

6. FUSES
6.01 Converting old British to Modern
6.02 Ratings Equivalants UK to US
6.03 Types & ratings

7. FUSE BOX IMAGES

YEAR MODEL
1982 ALL

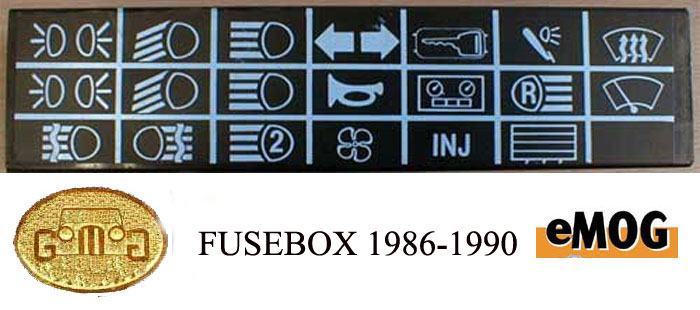

1986-1990 ALL
1990-2002 ALL

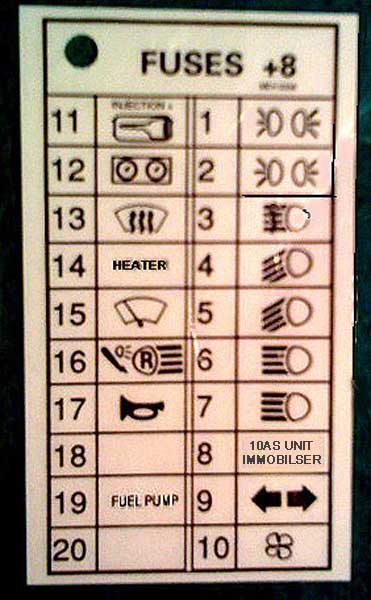

1994 ALL
2004- ALL

If yours is not here, please send an image

8. GENERATORS
8.01 Adjusting the Plus 4s
8.02 Functioning I
8.03 Functioning II
8.04 Generator-sized Alternators
8.05 Lucas Generator/Control Panel Box

9. LIGHTING
9.01 Converting to Halogen or LED
9.02 Daytime Running Lights
9.03 Dim Dip Stalk Failure
9.04 Fog & Spot Lamp Installation (front)
9.05 Hazard Switch (toggle switch)
9.06 Headlamps
9.07 Brackets

9.08 Headlamps (Relays to early models)
9.09 Headlamps (Converting to Halogen)

9.10 Headlamps (Removing your)
9.11 Lamp Lore (installing)

9.12 Wing Lamps
9.13 Wing Lamps (Brighter)

10. PARTS
10.01 Components (1960s & 1970s)
10.02 Looms (US  for 1951-1971 models)
10.03 Lucas Part Numbers (1950's & 60's)
10.04 Lucas Part Numbers (1960's to 80's

11. SUNDRY COMPONENTS
11.01 Alarm Systems
11.02 Horns
11.03 Horns (installing)
11.04 Ignition Switch
11.05 Inertia Switch
11.06 PCBs (printed ciruit boards)
11.07 Power Outlets


The information below was gleaned and posted VERBATIM from the MMC Handbooks and dealer parts books. However, it is subject to the following cautions.

A. The era from 1990 to 1998 has no published information. What we have been able to cobble together so far (below) reflects an ongoing GoMoG community project.

B. In the case of older cars, YOUR mog's reality often reflects changes done to it over its lifetime. Wiring will have changed and the fuseboxes used differently. Please do not blame this on GoMoG. That is silly especially when you choose not to help us all and the Morgan Community with YOUR discoveries
. Additionally, if a stock componet was scarce at a certain moment or it was a model transition period, MMC staff would buy something/anything at the factor down the street.

C. If a modification after the parts or handbook was
published, this will not appear as the Factory does NOT re-print Handbooks or their regular Parts Manuals because of such a change.

D. Way older wiring methods were changed for a reason. They are unsafe by any standard. 35-50 amp fuses with their corroded wires under their insulation regularly cause fires and greatly diminish the fusebox as a diagnostic or safety component. This is not an area where originality should be admired if using the car is a priority.

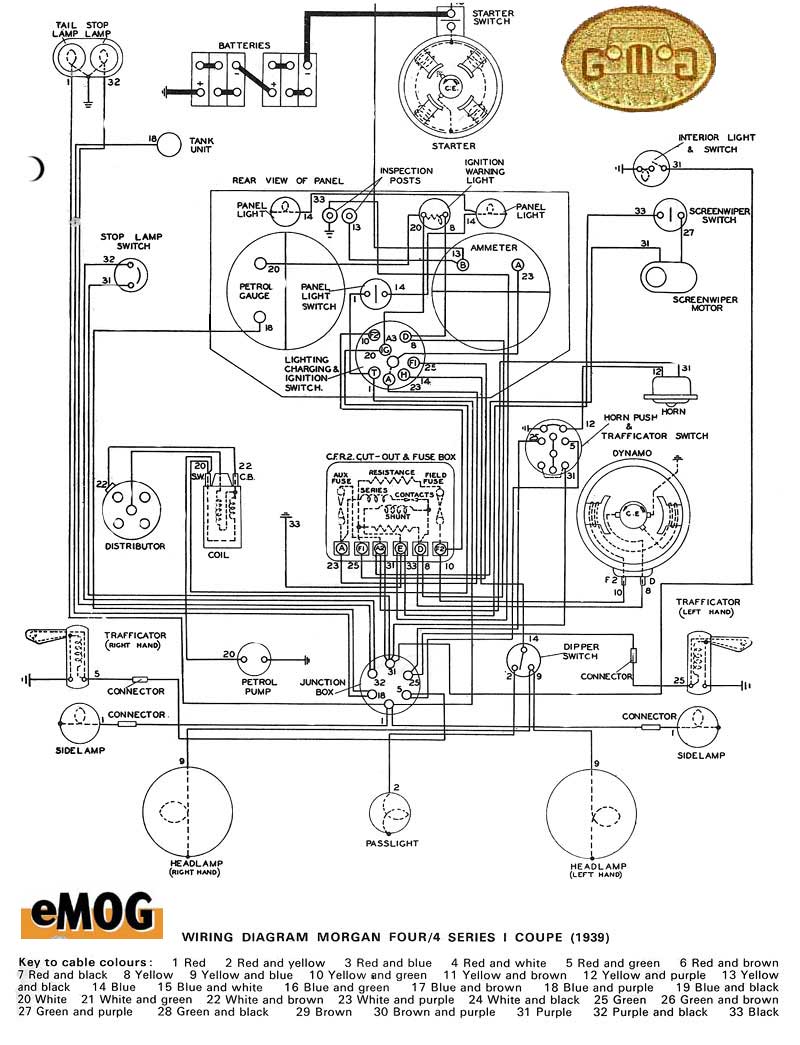

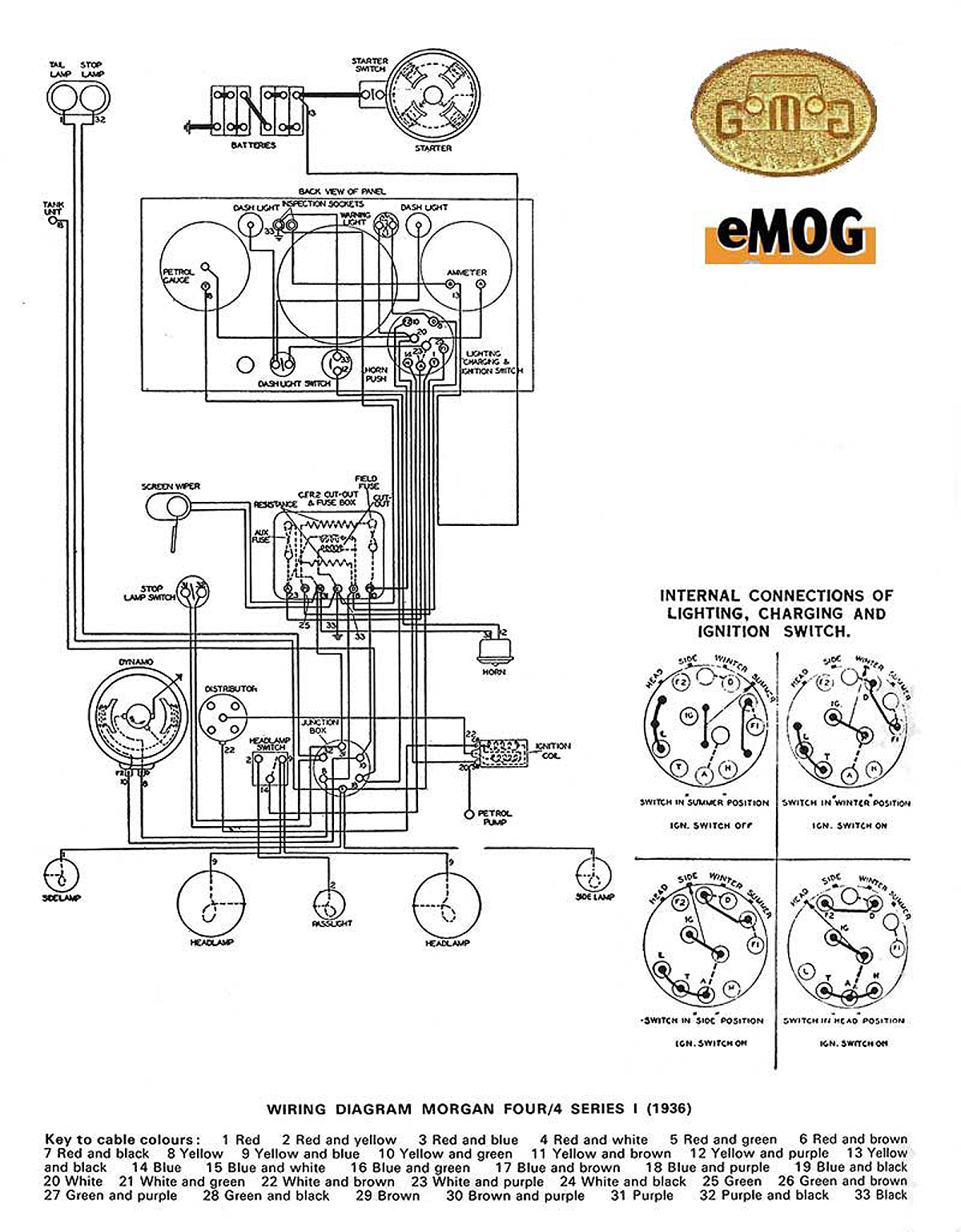

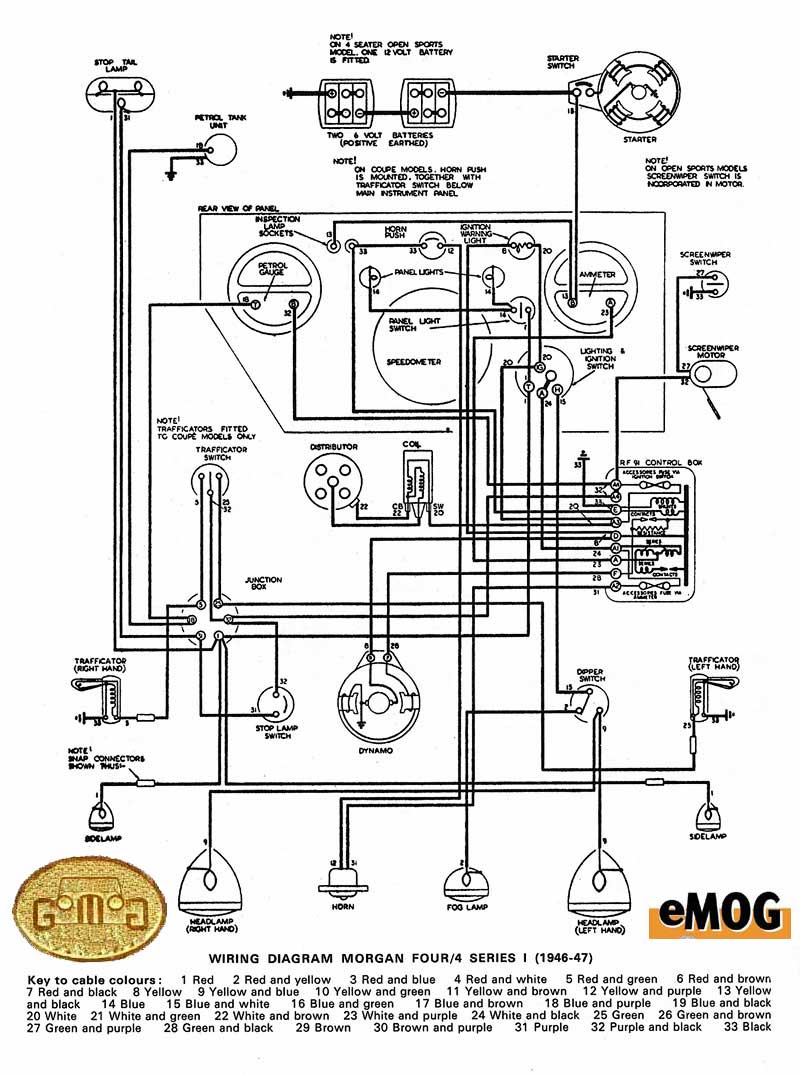

YEAR MODEL & MARKET
1950-1953 ALL
1955-1958 ALL
1959-1960 ALL
1961-1962 ALL
1964-1987 Smith's Classics Instruments

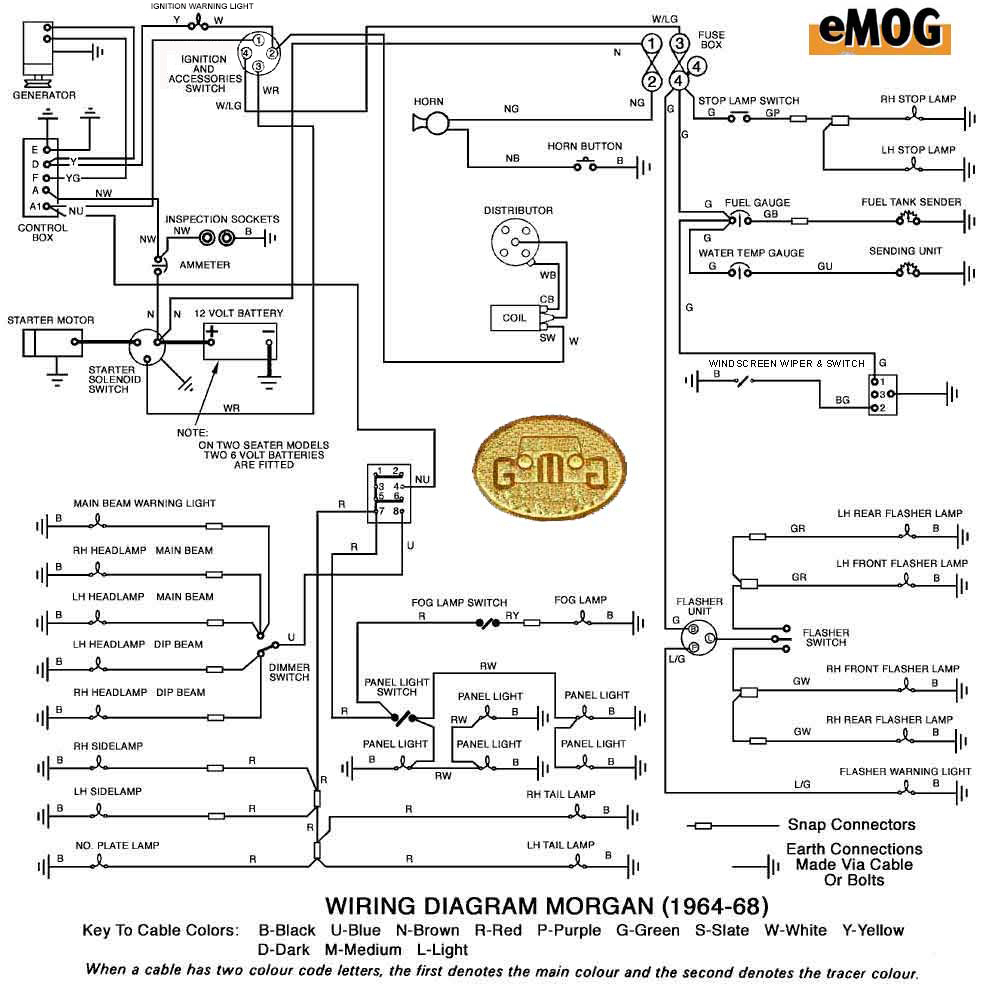

1964-1968 ALL

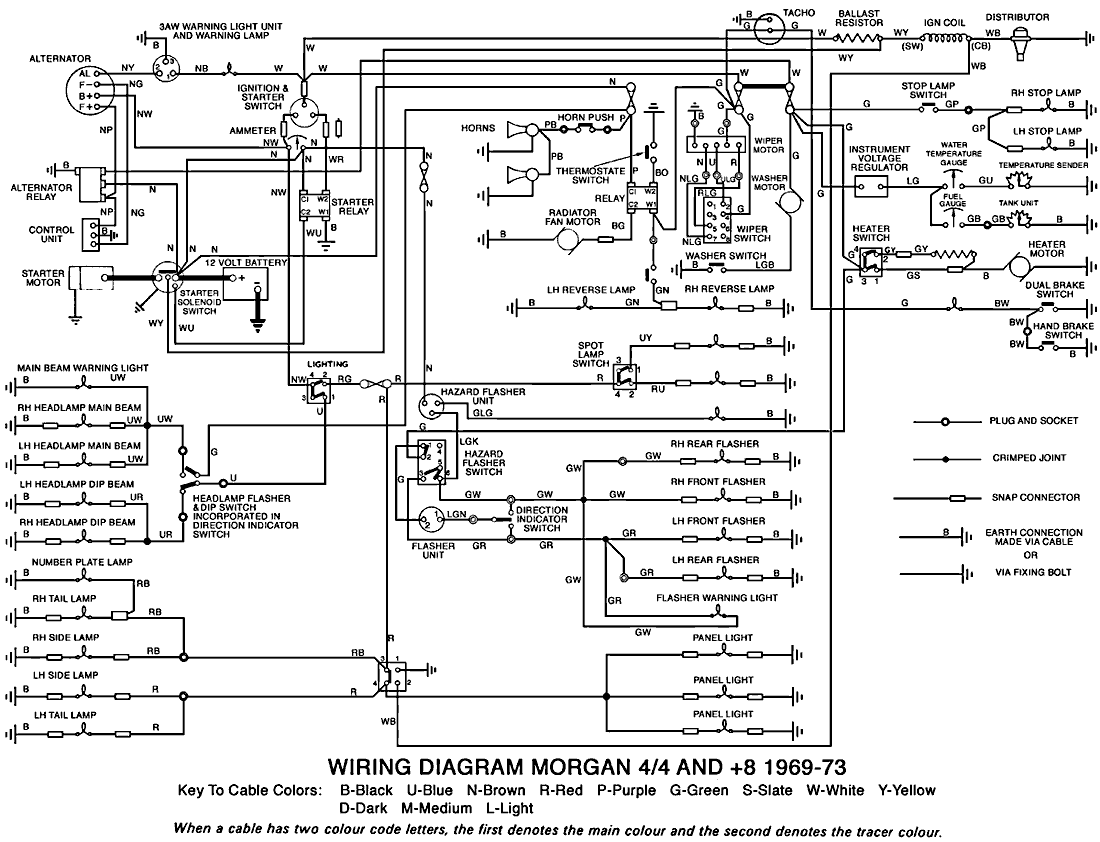

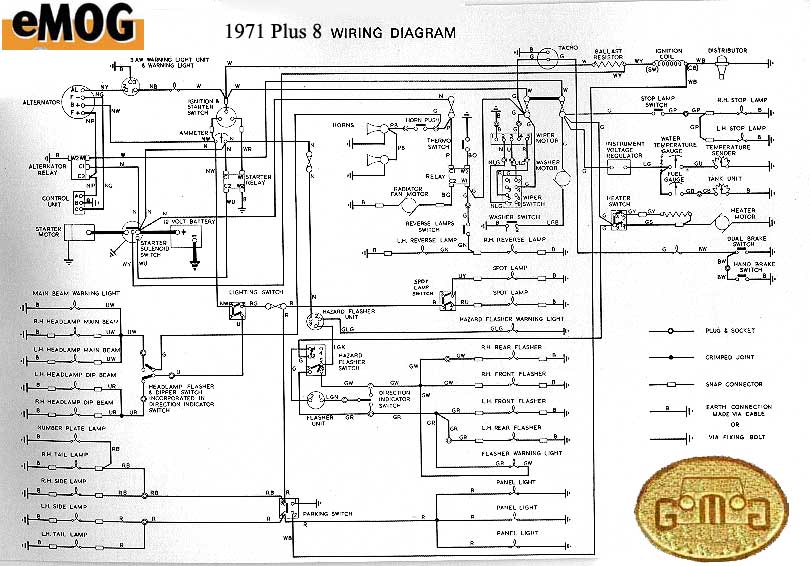

1969-1973 ALL
1973 4/4
1977-1982 Trad +8s
1984
4/4

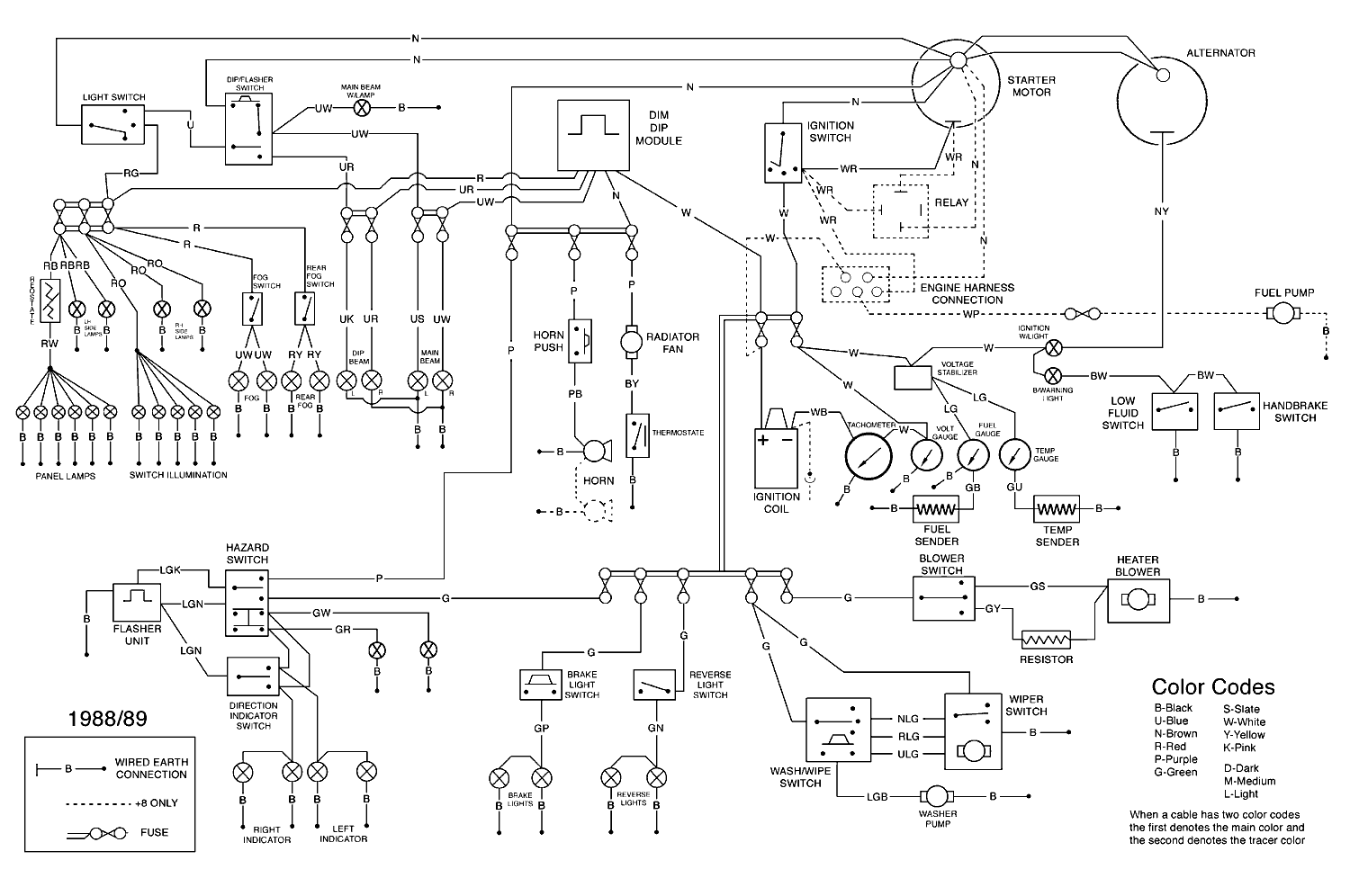

1988-1989 ALL
1990-1998 ALL
1992-1998 +4 EFI WIRING DIAGRAM
1990-1996 Trad +8 EFI OVERSEAS WIRING DIAGRAM
1990-1996  OVERSEAS EARTH WIRING
1990-1998 EURO Trad +8 EFI WIRING DIAGRAM
1990-1996 EUROPEAN EARTH WIRING
1998-2004 4/4
1998-2004 Trad Plus 8s
