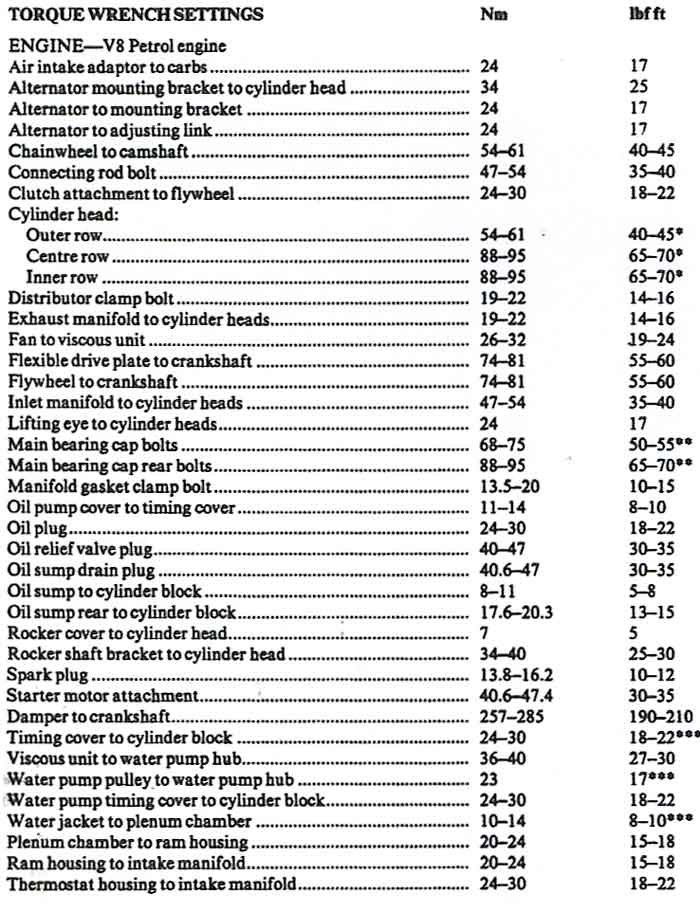

Operation
|
Description
|
Specified Torque
|
|
Nm
|
lbf/lb
|
| Air intake adaptor to carbs |
5/16" U.N.F nut |
24
|
17
|
| Alternator bracket to head |
3/8" U.N.C bolt |
34
|
25
|
| Alternator bracket to head |
5/16" U.N.C bolt |
24
|
17
|
| Alternator to mounting
bracket |
5/16" U.N.F bolt |
24
|
17
|
| Alternator to mounting bracket |
5/16" U.N.F nut |
24
|
17
|
| Alternator to adjusting link |
M8 bolt |
24
|
17
|
| Chain wheel to camshaft |
7/16" x 20 |
61
|
45
|
| Connecting rod bolt |
11/32" x 24 |
47
|
35
|
| Clutch attachment to flywheel |
5/16" U.N.F bolt |
27.5
|
20
|

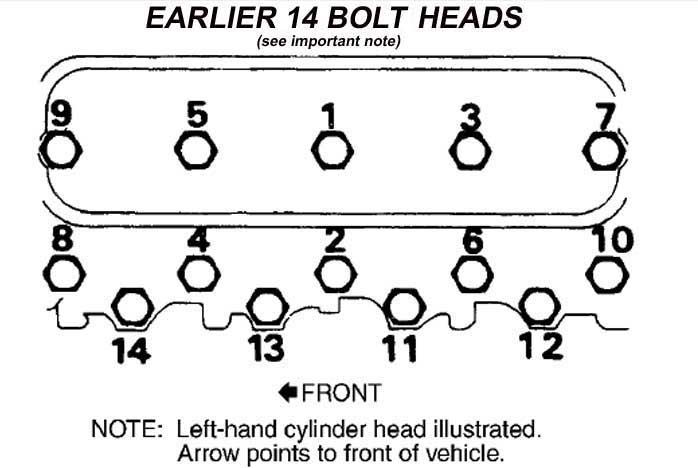

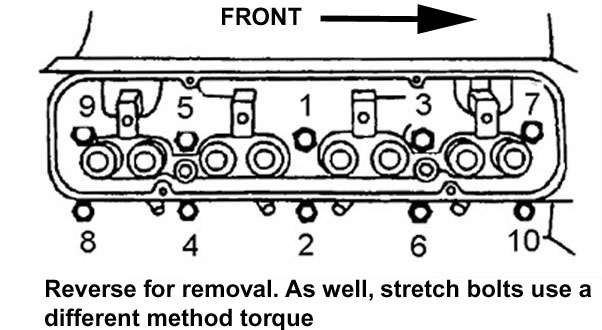

| Cylinder head bolts |
Nos 1 to 10 |
95
|
70
|
| Cylinder head bolts* |
Nos 11 to 14* |
34*
|
25*
|
| Distributor clamp bolt |
3/8" x 16 |
19
|
14
|
| Exhaust manifold to cylinder heads |
3/8" U.N.C bolt |
22
|
16
|
| Fan attachment |
1/4" U.N.F |
11.5
|
9
|
| Flex plate to starter ring |
5/16" U.N.F bolt |
34
|
25
|
| Flex plate to crankshaft |
7/16" U.N.F bolt |
81
|
60
|
| Flywheel to crankshaft |
7/16" U.N.F bolt |
81
|
60
|
| Inlet manifold to cylinder
heads |
3/8" U.N.C bolt |
40
|
30
|
| Lifting eye to cylinder heads |
5/16" U.N.C bolt |
24
|
17
|
| Main bearing cap bolts |
1/2" x 13 bolt |
75
|
55
|
| Main bearing cap rear
bolts |
1/2" x 13 bolt |
95
|
70
|
| Manifold gasket clamp bolt |
5/16" U.N.C bolt |
20
|
15
|
| Oil pump cover to timing cover |
1/4" U.N.C |
11.5
|
9
|
| Oil plug |
9/16" U.N.F |
27.5
|
20
|
| Oil relief valve cap |
3/4" U.N.F |
40
|
30
|
| Oil sump drain plug |
1/2" x 20 |
47
|
35
|
| Oil sump to cylinder block |
5/16 U.N.C setscrew |
11
|
8
|
| Oil sump rear to cylinder block |
5/16 U.N.C setscrew |
24
|
17
|
| Rocker cover to cylinder
head |
1/4 U.N.C setscrew |
7
|
5
|
| Rocker shaft to cylinder head |
3/8" U.N.C bolt |
40
|
30
|
| Sensing unit to bracket |
No 10 U.N.C bolt |
9
|
6
|
| Spark plug |
14 mm |
16
|
12
|
| Starter motor attachment |
3/8" U.N.C bolt |
47
|
|
35
|
| Timing cover to cylinder
block |
5/16" U.N.C bolt |
27.5
|
|
20
|
| Timing cover to cylinder block |
5/16" U.N.F nut |
27.5
|
|
20
|
| Waterpump to cylinder block |
5/16" U.N.C bolt |
27.5
|
|
20
|
| Water outlet elbow to inlet manifold |
5/16" U.N.C bolt |
27.5
|
|
20
|
| Water pipe to inlet manifold |
1/4" U.N.C bolt |
11
|
|
8
|
| Damper to crankshaft |
5/8" U.N.F |
!!??
|
|
210
|
|
Fuel Injection Components
|
Description
|
Nm
|
|
lbf/ft
|
| Air cleaner bracket to body |
M8 |
20
|
|
15
|
| Air cleaner to bracket |
M6 |
10
|
|
7
|
| Air flow meter to mounting bracket |
M8 |
20
|
|
15
|
| Cold start injector to plenum |
6mm |
10
|
|
7
|
| Decel valve to plenum |
1/4" U.N.C |
11
|
|
8
|
| Exhaust manifold gas sampling plug |
7/16" U.N.F |
27.5
|
|
20
|
| Extra air valve mounting |
1/4" U.N.C setscrew |
11
|
|
8
|
| Injector clamp plates |
1/4" U.N.C |
11
|
|
8
|
| Plenum chamber to inlet manifold |
5/16" U.N.C |
11
|
|
8
|
| Potentiometer to plenum |
1/4" U.N.C |
11
|
|
8
|
| Pressure regulator to bracket |
M 12 nut |
30
|
|
22
|
| Pressure regulator to inlet manifold |
1/4" U.N.C |
11
|
|
8
|
