PLUS 8  EXHAUSTS
1968-2004
September 1, 2012 - This section will expand greatly in the next few months and be joined by new sister sections for 4/s and Plus 4s from 1950-2004. It is a new GoMoG initiative to cover all systems made
for the 4-wheeler Classics from 1950 to 2004.
If you have suggestions or corrections, please contact webmaster@gomog.com
Pre-1972 SPECIAL NOTE

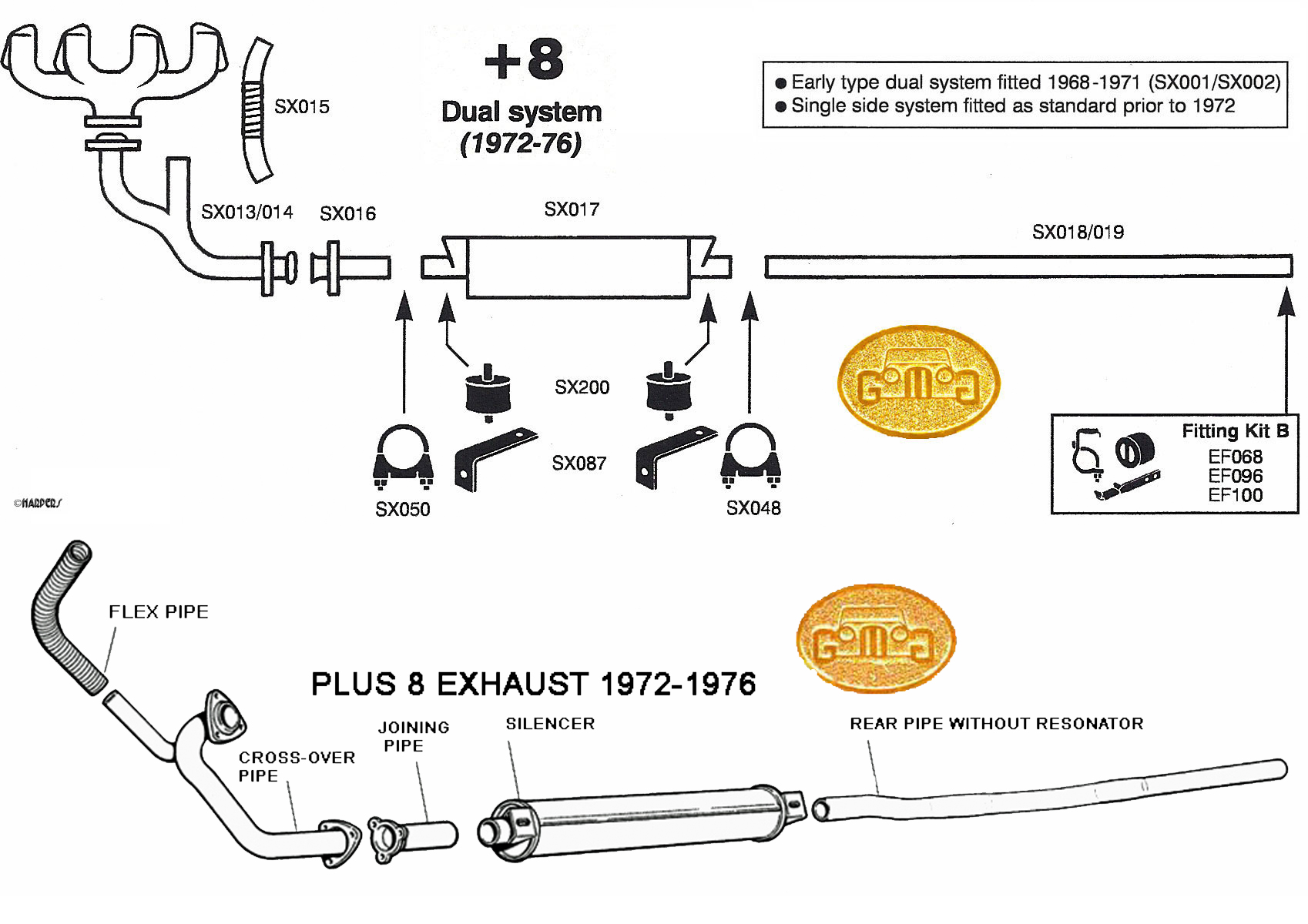

1972-1976 ORIGINAL SYSTEM

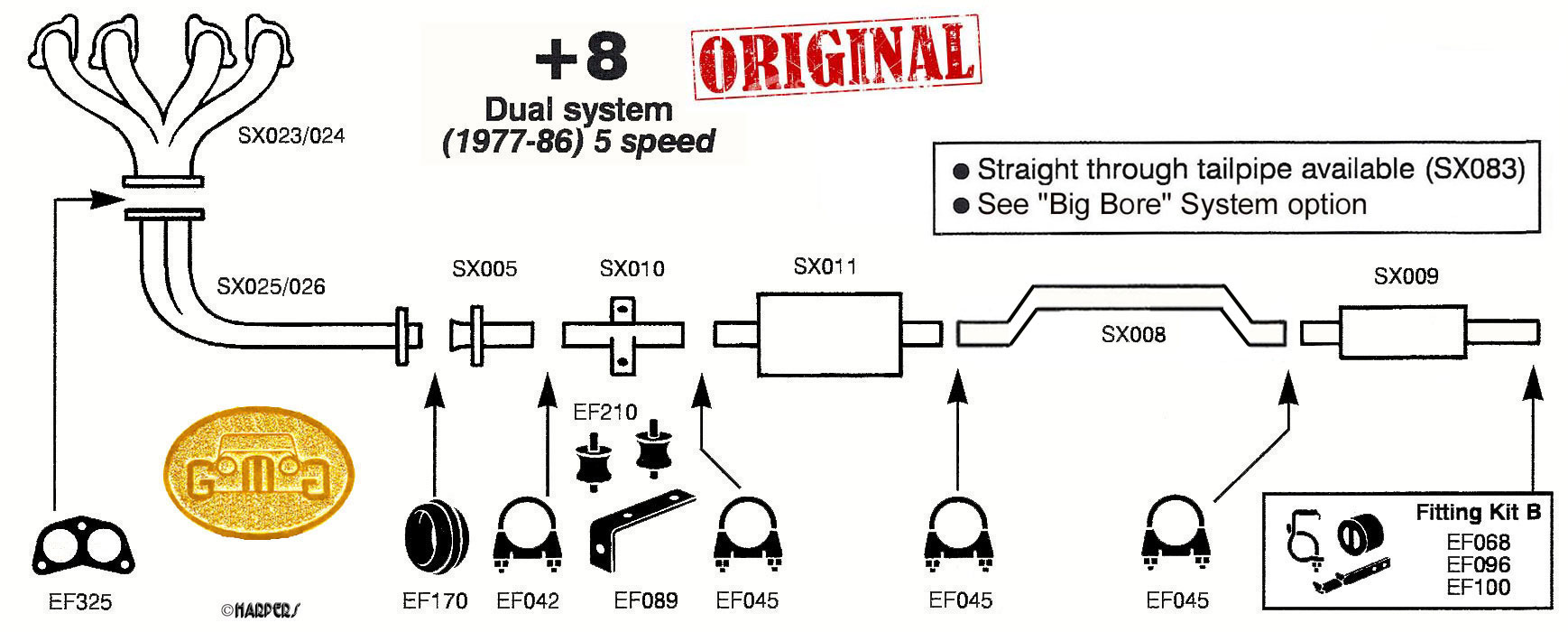

1977-1986 ORIGINAL SYSTEM

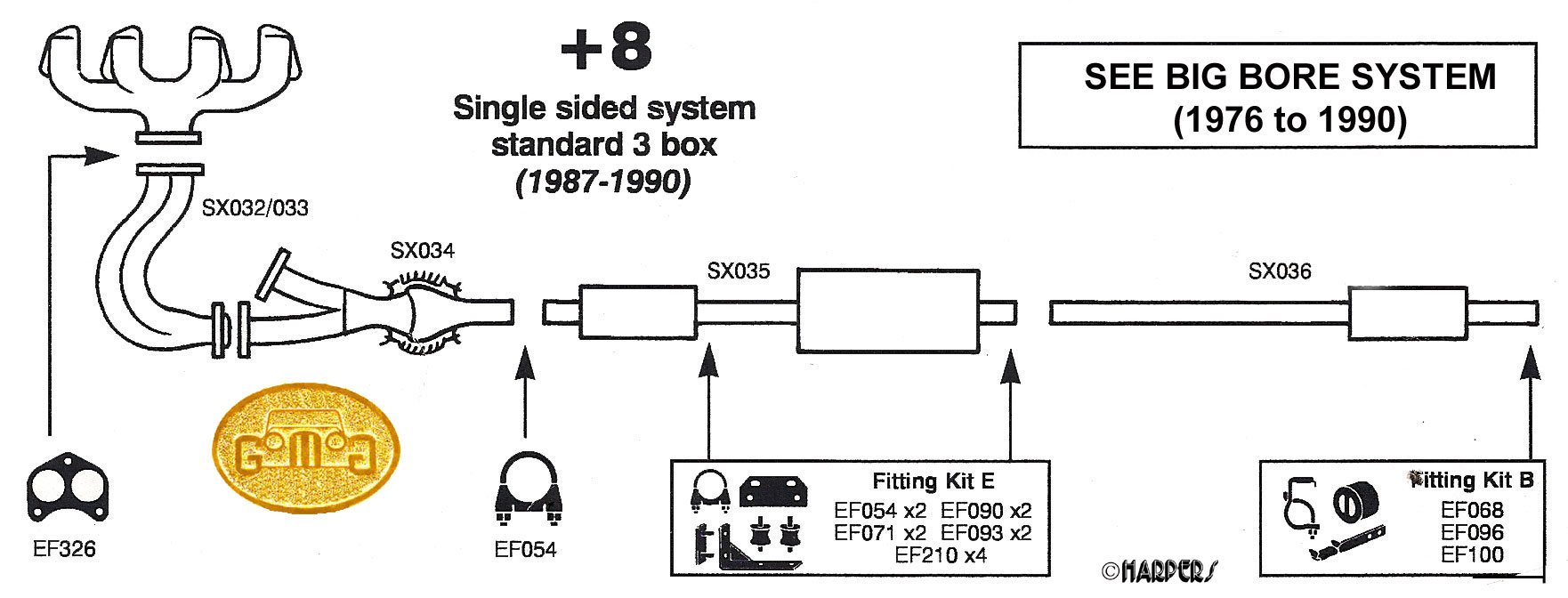

1987-1990 ORIGINAL SYSTEM
1976-1990 PERFORMANCE SYSTEM  The Big Bore
1990-1993 ORIGINAL SYSTEM (NO CATS)
1991-1997 ORIGINAL SYSTEM (CATS)
1997-2004 ORIGINAL SYSTEM


WHEN THEY ARE INDICATED
CROSS REFERENCE THE COMPONENTS BELOW
WITH THOSE INDICATED IN THE SYSTEMS ABOVE








WATCHPOINT: Morgan/Rover exhaust systems have a scary element about them. They have to use steel bolts or studs into aluminium heads. Steel and aluminum together can cause problems as the steel can have lunch on ally threads if you over tighten. As well, over tim, the two fuse and you can wake up one fine morning and find you have de-threaded your heads when you remove a bolt. Yet, they can often loosen. Loctite will not do the job because of the great heat in that area makes it a poor option.

I use lock tabs made for the engine. It makes the manifold installation I bit more fiddly, but they allow you to use the bolts at the correct torque 14lbsft with the assurance that the bolts will still not fall off.

I find the stock lock tabs (above) rust and look unsightly. You can have them powder coated or find them in stainless steel.
